| Model: |

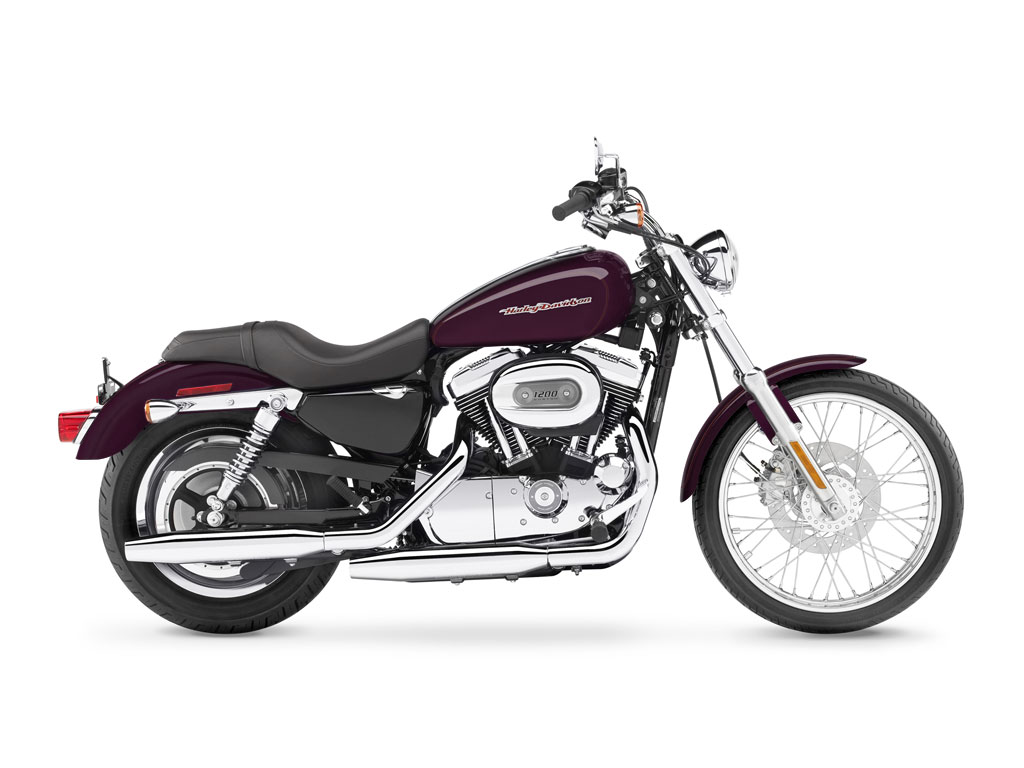

Harley Davidson Sportster XL 1200C |
| Length = 88.1 in/223.77 cm |
Seat Height = 28.9 in/73.41 cm |
| Ground Clearance = 6.7 in/17.2 cm |
Rake/Trail = 29.6 degrees/4.60 in |
| Wheelbase = 60.2 in/152.40 cm |
Dry Weight = 491 lbs/222.71 kg |
| Engine = OHV V2® Evolution® |
Bore x Stroke (in.) = 3.498 x 3.812 |
| Displacement (cu in/cc) = 73.20/1200 |
Compression Ratio = 9.0:1 |
| Fuel System = Carburetor |
Oil Capacity = 3 US qts. w/reserve |
| Fuel Capacity = 3.3 US gal. w/reserve |
Exhaust System = Staggered shorty duals |
| Primary Drive = Triple-row chain |
| Gear Ratio (Overall)
= |
1st - 9.047
2nd - 6.629
3rd -
4.823
4th - 3.973
5th - 3.366
| |
| Torque = 71.0 ft. lbs @ 4000 rpm |
Brakes
Dia x W. |
= |
Front: 11.5x.20(in.)
Rear:
11.5x.23(in) | |
Braking - maximum
loaded vehicle
weight |
= |
160ft @ 60mph
48.8m @ 96.60
kmph | |
| Wheels |
= |
13 spoke black painted cast
(laced
option) | |
| Miles per gallon |
= 52
hwy/45 city | |
Lean Angles Per
SAE J1168
right/left |
= |
37/37
(degrees) | |
| Instruments |
= |
Electronic speedometer with
odometer and
resettable
trip meter; electronic
tach | |
| Color Options |
= |
Vivid Black - Violet Pearl - Lazer Red Pearl
Sinister Blue Pearl - 2-tone Lazer Red & Black |
|
