Harley Davidson Road Glide



SPECIFICATIONS

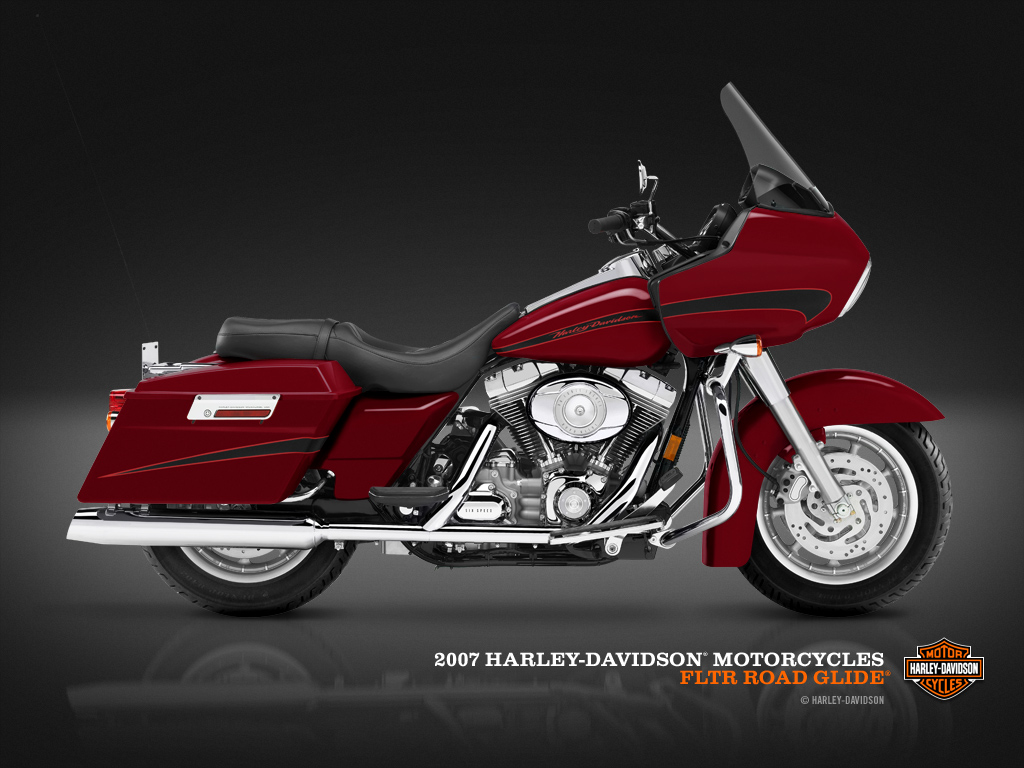

Model: 2007 Harley Davidson™ Road Glide - FLTR

DIMENSIONS U.S.A.
LENGTH 93.7 in.
SEAT HEIGHT 26.9 in./29.5 in.
GROUND CLEARANCE 5.1 inches
Lean Angle (per SAEJ1168)(LEFT/RIGHT) 30.0° / 30.0°
RAKE/TRAIL ( ° / in.) 26.0º / 6.2 in.
WHEELBASE 63.5 inches / 1611.6 mm
DRY WEIGHT 761.0 lbs.

POWERTRAIN
ENGINE Air-cooled, Twin Cam 96™
DISPLACEMENT 96.0 in.³
BORE X STROKE 3.75 in. x 4.38 in.
Engine Torque 92.6 ft. lbs. @ 3500 rpm
FUEL SYSTEM Electronic Sequential Port Fuel Injection (ESPFI)
COMPRESSION RATIO 9.2:1
MILES PER GALLON 45.0 hwy / 32.5 city
PRIMARY DRIVE Double-row chain
GEAR RATIOS 1st:9.312    2nd:6.421    3rd:4.774    4th:3.926    5th:3.279    6th:2.790

WHEELS/TIRES
WHEELS
   FRONT
   REAR
Silver 9-Spoke Cast Aluminum
Silver 9-Spoke Cast Aluminum
TIRE SIZE
   FRONT
   REAR
MT90B16 72H
MU85B16 77H

Electrical
INTRUMENTS Electronic speedometer w/ odometer, resettable tripmeter, tachometer, fuel gauge, voltmeter, low oil pressure gauge, diagnostics readout, 6-speed indicator light, cruise control with indicator light, ambient air temperature gauge
INDICATOR LAMPS High beam; running lights, directional light bar, neutral, low oil pressure, engine diagnostics; turn signals, security system (optional), 6-speed, low fuel warning

CHASIS
BRAKES
   FRONT
   REAR
4-piston
4-piston
LEAN ANGLE (per SAEJ1168)(LEFT/RIGHT) 30.0° / 30.0°
EXHAUST SYSTEM Chrome dual slash-cut


OIL CAPACITY 4.0 quarts / 3.8 liters
FUEL CAPACITY 5.0 gallons / 18.9 liters
FUEL CAPACITY RESERVE 0.9 gallons / 3.4 liters
LITERS PER 100 KM 5.1 hwy / 6.1 city
EXHAUST SYSTEM Chrome dual slash-cut

COLOR OPTIONS
Vivid black, black cherry pearl, black pearl, fire red pearl, deep cobalt pearl, Pacific blue pearl (new), pewter pearl (new) yellow pearl, mirage orange pearl
OPTIONAL EQUIPMENT
Security system; Chrome Aluminum Profile Laced front and rear wheels
UNIQUE FEATURES
40-watt AM/FM/WB/CD/MP3 Advanced Audio System by Harman/ Kardon®; wind-splitting, frame-mounted fairing; cockpit-style full instrumentation; silver powder-coated engine with chrome covers; clean front and rear fenders; electronic cruise control


• All models feature 6-speed transmission (VRSC and Sportster models are 5-speed) and carbon-fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited-mileage warranty. Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specificatlons may vary by country and region depending on local laws. Some models are not available in certain countries. Attention: The vehicle in the configuration shown and many of the accessories for this vehicle are not available for sale or use in several countries outside the U.S. Specifications and vehicle availability may vary from market to market depending on local importation and registration laws. Please check with your local dealer for details. Specifications may not match those of official certification in some markets due to timing of content release, variance in testing methods, and/or vehicle differences. Customers seeking officially recognized regulatory specifications for their vehicle should refer to certification documents and/or contact their respective retailer or distributor.
